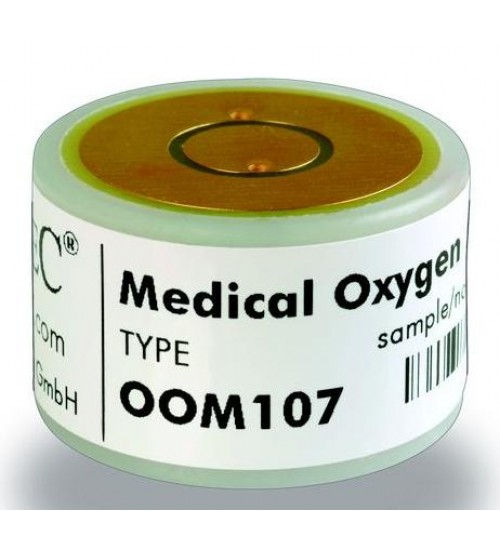

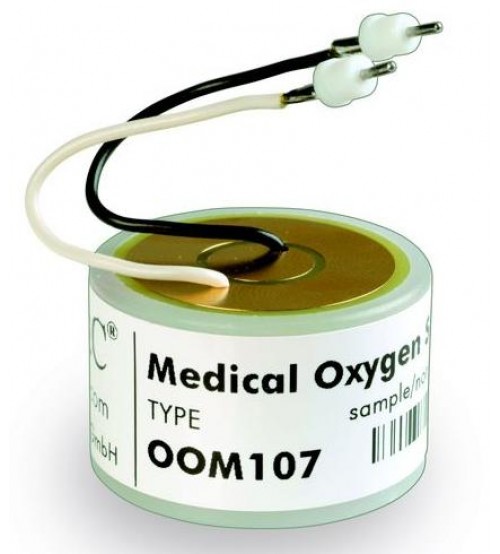

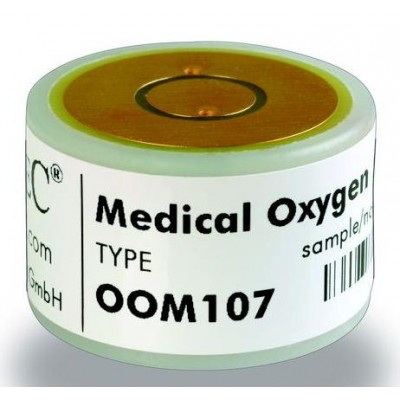

Кислороден сензор

Measurement Range: 0-100 % oxygen

Output in ambient air: 170 to 230µA

Electrical Interface: Gold plated slip rings

Accuracy and Repeatability: < 1 % vol. O2 when calibrated at 100 %

Oxygen

Linearity error: < 3 % relative

Response time: < 12sec. to 90 % of final value

Zero Offset Voltage: < 200 µV in 100 % nitrogen

applied for 5 min

Cross Interference: Meets EN ISO 21647 requirements

Influence of Humidity: - 0.03 % rel. per % RH at 25°C

Influence of Pressure: proportional to change in oxygen partial

pressure

Influence of Mechanical Shock: < 1% relative after a fall from 1m

Operating Temperature: 0 to 50°C

Temperature Compensation: No temperature compensation

Operating Humidity: 0-99 % RH non-condensing

Long Term Output Drift: < 1 % vol. oxygen per month

 typically < - 15 % relative over lifetime

Storage Temperature: -20 to +50 °C

Recommended Storage: +5 to +15 °C

Recommended Load: ≥ 10 kOhms

Warm-Up Time: < 30 minutes, after replacement of sensor

Nominal Sensor Lifetime: ≥ 250.000 % vol. oxygen hours

Weight: approximately 43 grams

Part No.: 01-00-0058 / OOM107

01-00-0080 / OOM107-2
